| ÖZELLİK | AÇIKLAMA |
|---|---|

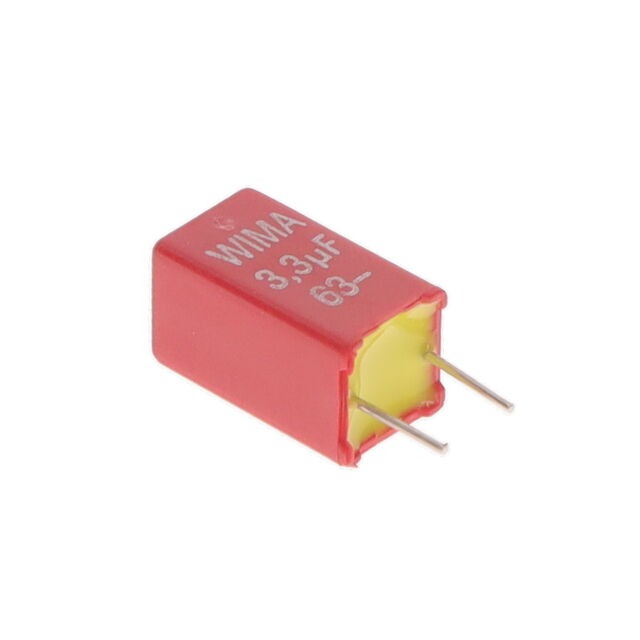

| Mfr | WIMA |
| Series | MKS 2 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Capacitance | 3.3 µF |
| Tolerance | ±10% |
| Voltage Rating – AC | 40V |
| Voltage Rating – DC | 63V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.283″ L x 0.283″ W (7.20mm x 7.20mm) |
| Height – Seated (Max) | 0.512″ (13.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197″ (5.00mm) |
| Applications | Automotive |
| Ratings | AEC-Q200 |
| Features | – |
