Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Texas Instruments |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 2 |
| Output Type | Open-Collector, Rail-to-Rail |
| Voltage – Supply, Single/Dual (±) | 3V ~ 36V, ±1.5V ~ 18V |
| Voltage – Input Offset (Max) | 2.5mV @ 36V |
| Current – Input Bias (Max) | 0.025µA @ 5V |
| Current – Output (Typ) | 21mA @ 5V |
| Current – Quiescent (Max) | 600µA |
| CMRR, PSRR (Typ) | – |
| Propagation Delay (Max) | 1µs (Typ) |
| Hysteresis | – |
| Operating Temperature | -40°C ~ 125°C |

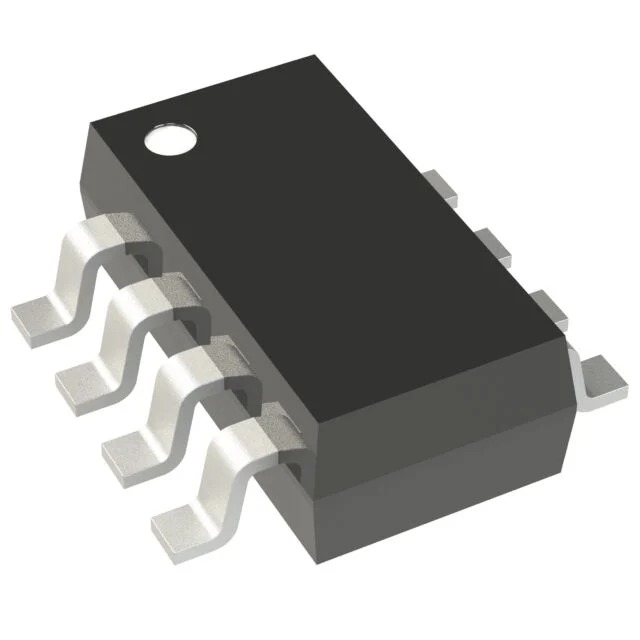

| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSOT-23-8 |
| Base Product Number | LM2903 |
