Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Tensility International Corp |
| Series | M12 |
| Packaging | Tray |
| Part Status | Active |

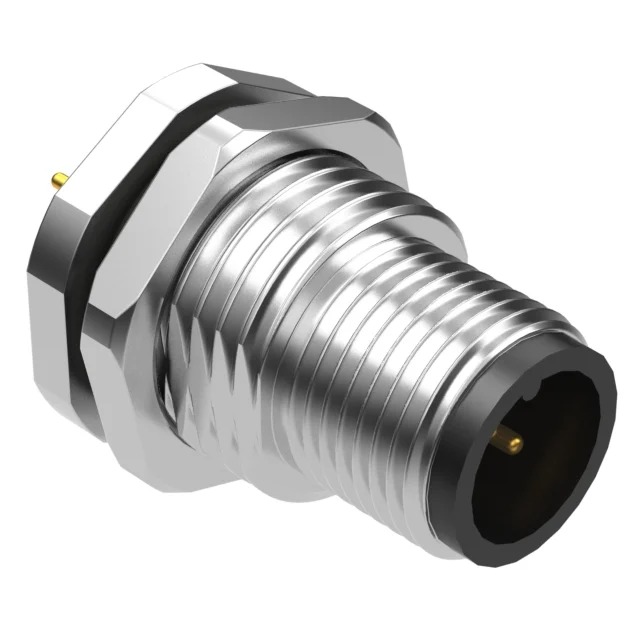

| Connector Type | Plug, Male Pins |
| Number of Positions | 5 |
| Shell Size – Insert | M12-5 |
| Shell Size, MIL | – |
| Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead – Front Side Nut |
| Termination | Solder |
| Fastening Type | Threaded |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Contact Finish – Mating | Gold |
| Color | Silver |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB |
| Features | – |
| Shielding | Shielded |
| Current Rating (Amps) | 4A |
| Voltage Rating | 60V |
| Cable Opening | – |
| Operating Temperature | -40°C ~ 105°C |
| Backshell Material, Plating | – |
| Contact Material | Brass |
| Contact Finish Thickness – Mating | – |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Applications | – |
