Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

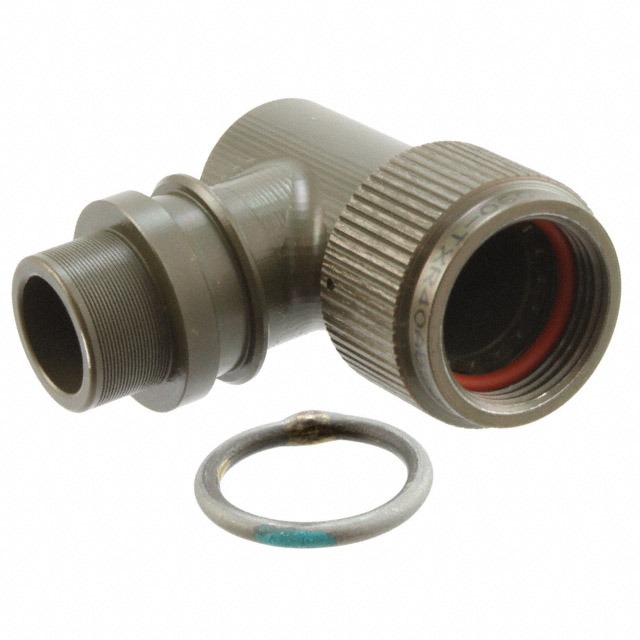

| Manufacturer | TE Connectivity Raychem Cable Protection |
| Series | TXR |
| Packaging | Bulk |
| Part Status | Discontinued at Digi-Key |
| Type | Backshell, Heat Shrink Adapter |
| Cable Opening | – |
| Diameter – Outside | 0.827″ (21.00mm) |
| Shell Size – Insert | 11, B |
| Thread Size | M15x1 |
| Cable Exit | 90° |
| Material | Aluminum Alloy |
| Plating | Cadmium |
| Shielding | Shielded |
| Color | Olive Drab |
| Features | Tinel Lock |
| Ingress Protection | Environment Resistant |
| Includes | 6 pcs – 2 pc Backshell, 1 Braid, 2 O-Rings, 1 Tinel Ring |
| Material Flammability Rating | – |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV |
| Base Product Number | TXR40AB90 |
