Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

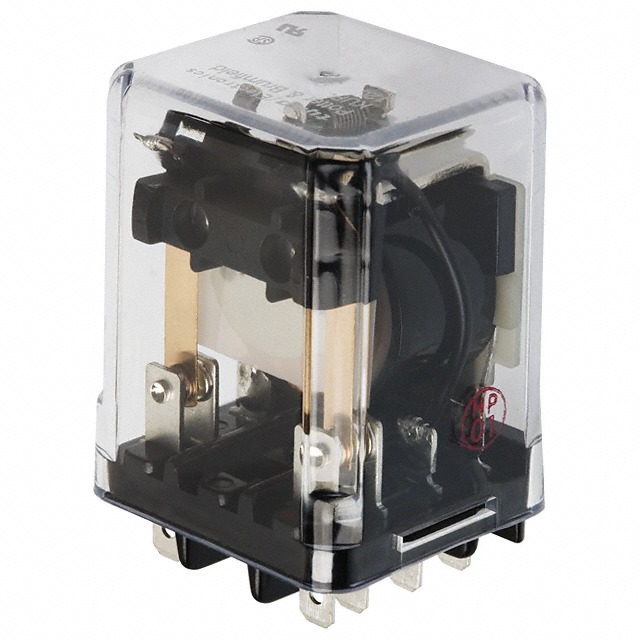

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | KUP |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 120VAC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 240VAC – Max |
| Load – Max Switching | 1200VA |
| Coil Current | 24 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Plug In, Quick Connect – 0.187″ (4.7mm) |
| Seal Rating | – |
| Coil Insulation | Class B |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | – |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 45°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 1.7 kOhms |
| Base Product Number | KUP-14 |
