Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

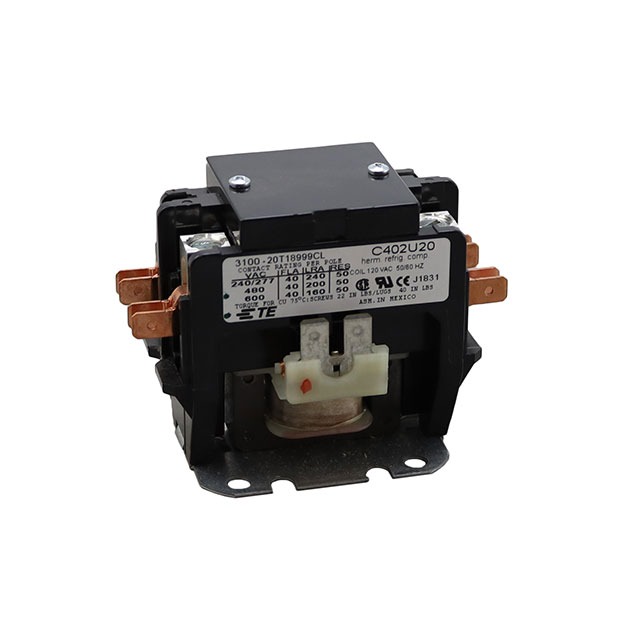

| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | 3100, Products Unlimited |
| Packaging | Bulk |
| Part Status | Obsolete |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Form | DPST-NO (DM) (2 Form X) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 600VAC – Max |
| Features | Insulation – Class B |
| Termination Style | Screw Terminal, Quick Connect – 0.250″ (6.3mm) |
| Operating Temperature | -40°C ~ 65°C |
| Must Operate Voltage | 88 VAC |
| Must Release Voltage | 20 VAC |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Coil Power | 7VA |
| Coil Resistance | 250Ohms |
| Base Product Number | 3100-20 |
