Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | TE Connectivity Erni |
| Series | M8/M12 |
| Packaging | Bag |
| Part Status | Active |

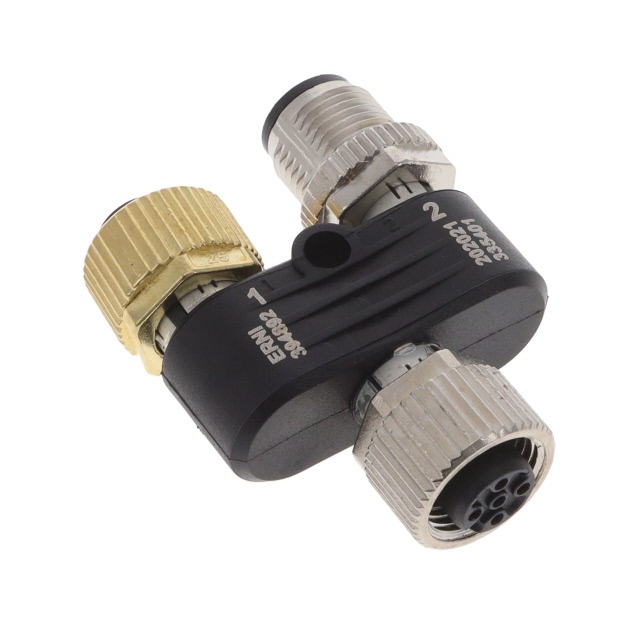

| Connector Style | Distributor Y-Shaped |
| Convert From (Adapter End) | Female Sockets |
| Convert To (Adapter End) | Female Sockets (1), Male Pins (1) |
| Shell Size – Insert (Convert From) | M12 |
| Shell Size – Insert (Convert To) | M12 |
| Number of Positions (Convert From) | 5 |
| Number of Positions (Convert To) | 5 (2) |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | – |
| Fastening Type | Threaded |
| Primary Material | Metal |
| Housing Material | – |
| Housing Color | Black |
| Features | Coupling Nut |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Shielding | Unshielded |
| Includes | – |
| Current Rating (Amps) | 4A |
| Voltage Rating | 60VAC/DC |
| Operating Temperature | -25°C ~ 85°C |
| Orientation (Convert From) | A |
| Orientation (Convert To) | A |
| Material Flammability Rating | – |
| Housing Finish | – |
| Base Product Number | – |
