Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | TE Connectivity Erni |
| Series | M8 |
| Packaging | Bulk |
| Part Status | Active |

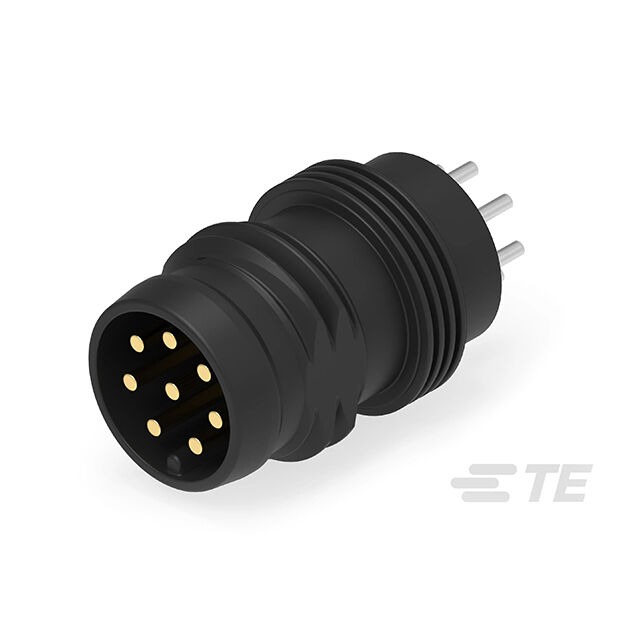

| Connector Type | Insert, Male Pins |
| Number of Positions | 8 |
| Shell Size – Insert | M8-8 |
| Shell Size, MIL | – |
| Mounting Type | Through Hole |
| Mounting Feature | – |
| Termination | Solder |
| Fastening Type | – |
| Orientation | A |
| Primary Material | – |
| Shell Material | – |
| Shell Finish | – |
| Contact Finish – Mating | Gold |
| Color | Black |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Insert Only, Requires Shell |
| Shielding | Unshielded |
| Current Rating (Amps) | 2A |
| Voltage Rating | 30VDC |
| Cable Opening | – |
| Operating Temperature | -25°C ~ 85°C |
| Backshell Material, Plating | – |
| Contact Material | Copper Alloy |
| Contact Finish Thickness – Mating | – |
| Insert Material | Liquid Crystal Polymer (LCP) |
| Applications | – |
