Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Series | Termi-Blok, Buchanan |
| Packaging | Bulk |
| Part Status | Active |

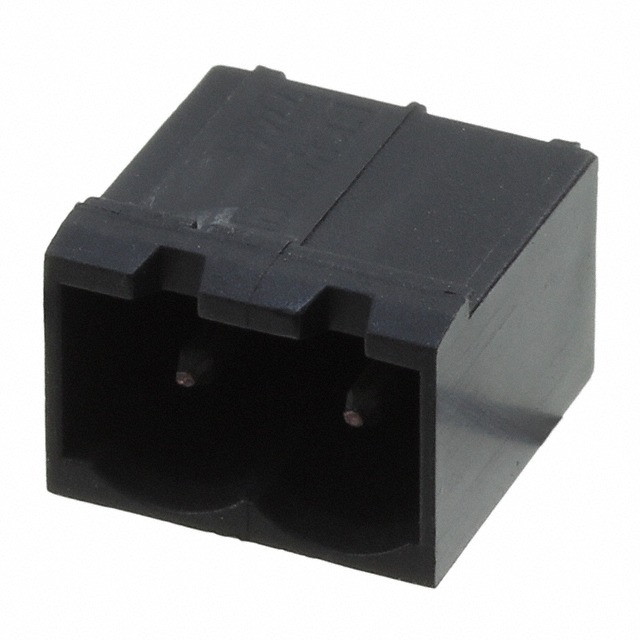

| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Number of Levels | 1 |
| Pitch | 0.197″ (5.00mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | – |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current – IEC | – |
| Current – UL | 15 A |
| Voltage – UL | 300 V |
| Wire Gauge or Range – AWG | – |
| Wire Gauge or Range – mm² | – |
| Color | Black |
| Operating Temperature | -40°C ~ 110°C |
| Contact Mating Finish | Tin |
| Features | – |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | – |
| Screw Size | – |
| Torque – Screw | – |
| Wire Strip Length | – |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | 0.138″ (3.50mm) |
| Insulation Height | 0.329″ (8.36mm) |
| Base Product Number | 796645 |
