Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

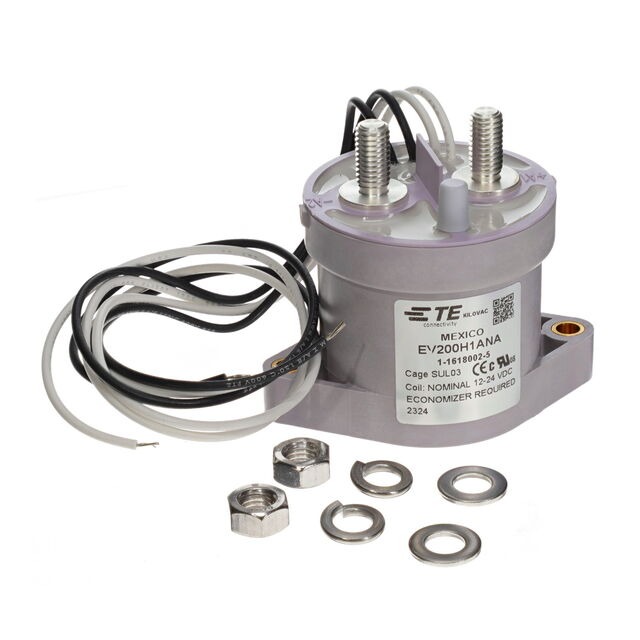

| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | EV200, KILOVAC |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 9 ~ 36VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Rating (Current) | 500 A |
| Switching Voltage | 900VDC – Max |
| Features | Sealed – Hermetically |
| Termination Style | Stud, Wire Leads |
| Operating Temperature | -40°C ~ 85°C |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 6 VDC |
| Contact Material | – |
| Operate Time | 15 ms |
| Release Time | 12 ms |
| Coil Power | – |
| Coil Resistance | 3.1Ohms |
| Base Product Number | EV200 |
