Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

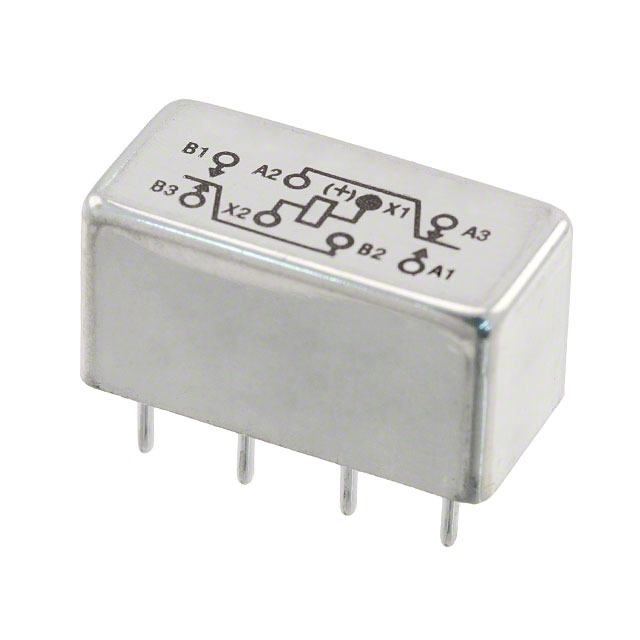

| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | HFW, CII |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 26.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 30VDC – Nom |
| Load – Max Switching | – |
| Coil Current | 37.9 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 13.5 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | 4 ms |
| Release Time | 2 ms |
| Operating Temperature | -65°C ~ 125°C |
| Contact Material | – |
| Approval Agency | – |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 700 Ohms |
| Base Product Number | 1617032 |
