Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Taiyo Yuden |
| Series | CB, C Type |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material – Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 340 mA |
| Current – Saturation (Isat) | 240mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 1.56Ohm Max |
| Q @ Freq | – |
| Frequency – Self Resonant | 40MHz |
| Ratings | – |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency – Test | 2.52 MHz |
| Mounting Type | Surface Mount |

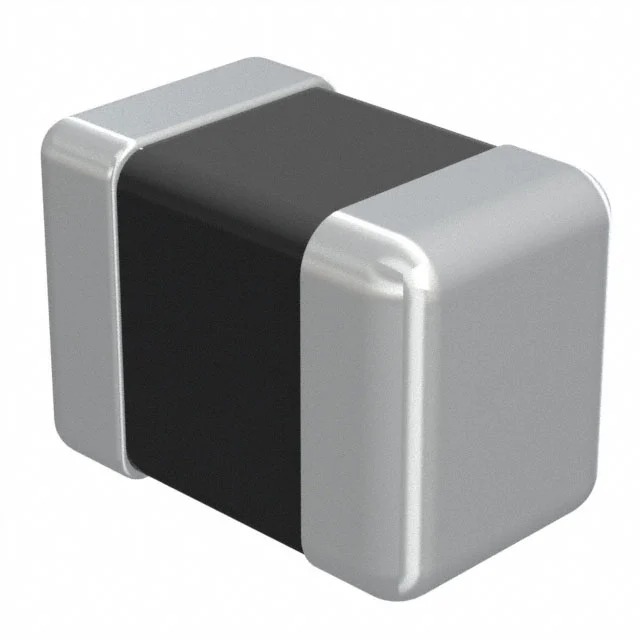

| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079″ L x 0.049″ W (2.00mm x 1.25mm) |
| Height – Seated (Max) | 0.057″ (1.45mm) |
