Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Taiyo Yuden |
| Series | CB |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material – Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 130 mA |
| Current – Saturation (Isat) | 60mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 9.1Ohm Max |
| Q @ Freq | – |
| Frequency – Self Resonant | 8MHz |
| Ratings | – |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency – Test | 796 kHz |
| Mounting Type | Surface Mount |

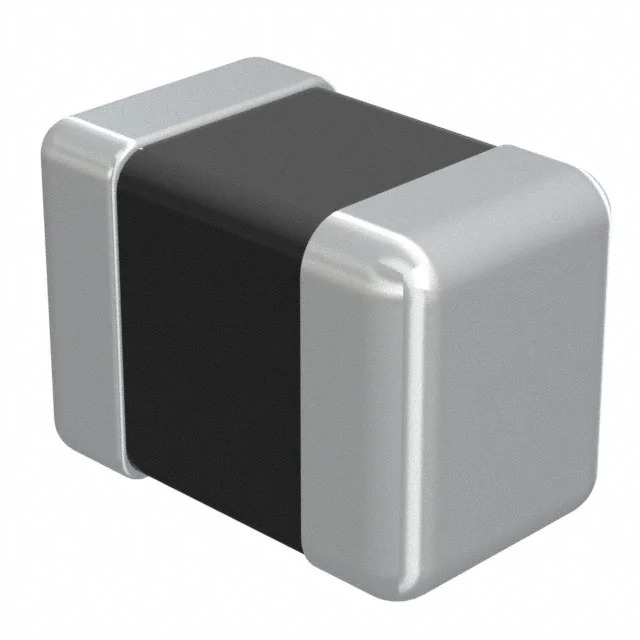

| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079″ L x 0.049″ W (2.00mm x 1.25mm) |
| Height – Seated (Max) | 0.057″ (1.45mm) |
