Açıklama

ÖZELLİK	AÇIKLAMA
Mfr	STMicroelectronics
Series	DeepGATE™, STripFET™ VI
Packaging	Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current – Continuous Drain (Id) @ 25°C	3A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	160mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.4 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	340 pF @ 48 V
FET Feature	–
Power Dissipation (Max)	2.6W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Grade	–
Qualification	–
Mounting Type	Surface Mount

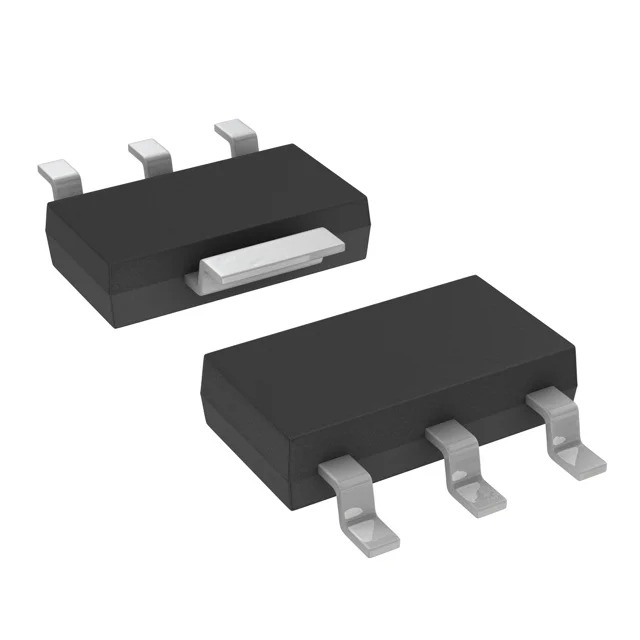

Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
Base Product Number	STN3
