Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | STMicroelectronics |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 2 |
| Output Type | Open-Collector, Rail-to-Rail |
| Voltage – Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V |
| Voltage – Input Offset (Max) | 2mV @ 30V |
| Current – Input Bias (Max) | 0.1µA @ 5V |
| Current – Output (Typ) | 18mA @ 5V |
| Current – Quiescent (Max) | 2.5mA |
| CMRR, PSRR (Typ) | – |
| Propagation Delay (Max) | – |
| Hysteresis | – |
| Operating Temperature | 0°C ~ 70°C |

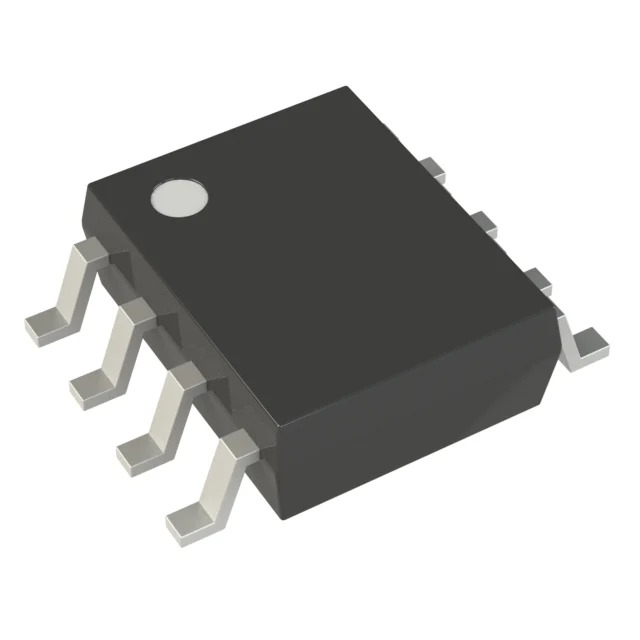

| Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM393 |
