Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

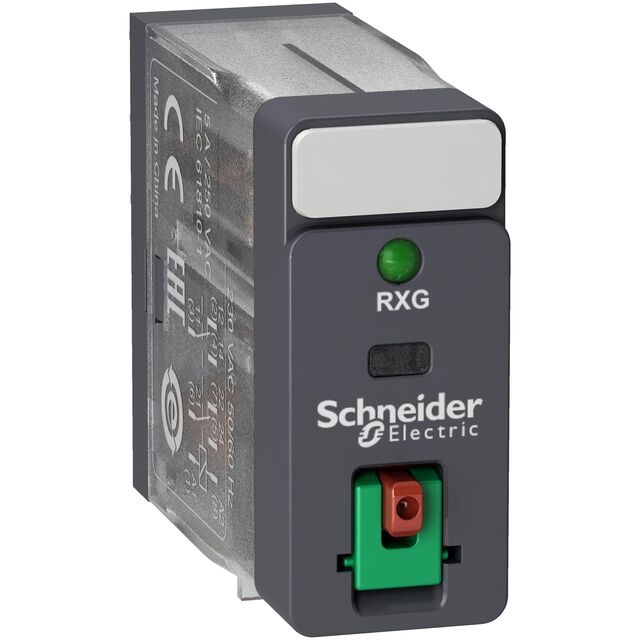

| Mfr | Schneider Electric |
| Series | Harmony |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC, 30VDC – Max |
| Load – Max Switching | 1250VA, 150W |
| Coil Current | 92.3 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Test Button |
| Termination Style | Plug In |
| Seal Rating | – |
| Coil Insulation | Class F |
| Must Operate Voltage | 19.2 VAC |
| Must Release Voltage | 7.2 VAC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Approval Agency | CE, CSA, DNV-GL, EAC, UL |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 260 Ohms |
| Base Product Number | RXG22 |
