Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

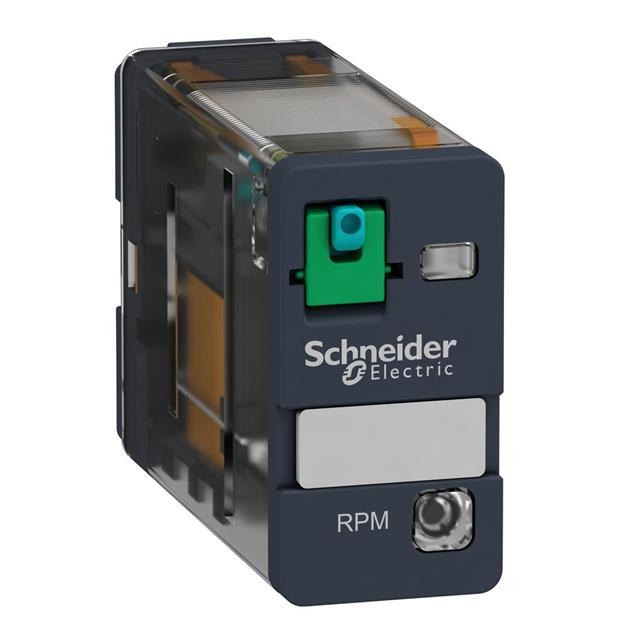

| Mfr | Schneider Electric |
| Series | Harmony |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 250VAC, 28VDC – Max |
| Load – Max Switching | 3750VA, 420W |
| Coil Current | 53.3 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Test Button |
| Termination Style | Plug In |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CSA, EAC, UL |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 450 Ohms |
| Base Product Number | RPM12 |
