| ÖZELLİK | AÇIKLAMA |
|---|---|

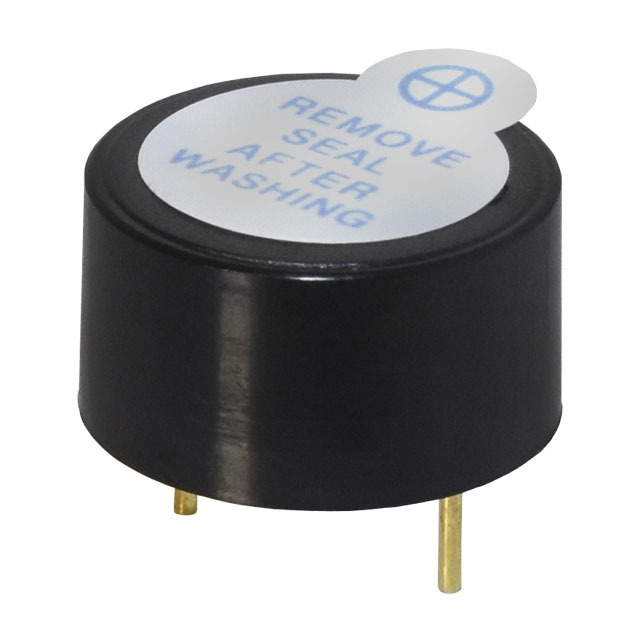

| Manufacturer | Same Sky (Formerly CUI Devices) |
| Series | CPI |
| Packaging | Box |
| Part Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage – Rated | 12 V |
| Voltage Range | 3 ~ 16V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | – |
| Sound Pressure Level (SPL) | 80dB @ 12V, 10cm |
| Current – Supply | 7mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | – |
| Ratings | Washable |
| Ingress Protection | – |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.543″ Dia (13.80mm) |
| Height – Seated (Max) | 0.315″ (8.00mm) |
| Base Product Number | CPI-13 |
