Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Series | CMT |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage – Rated | 5 V |
| Voltage Range | 25V (Max) |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | – |
| Sound Pressure Level (SPL) | 81dB @ 5V, 10cm |
| Current – Supply | 5mA |
| Port Location | Side |
| Operating Temperature | -40°C ~ 120°C |
| Approval Agency | – |
| Ratings | – |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.472″ L x 0.472″ W (12.00mm x 12.00mm) |
| Height – Seated (Max) | 0.130″ (3.30mm) |

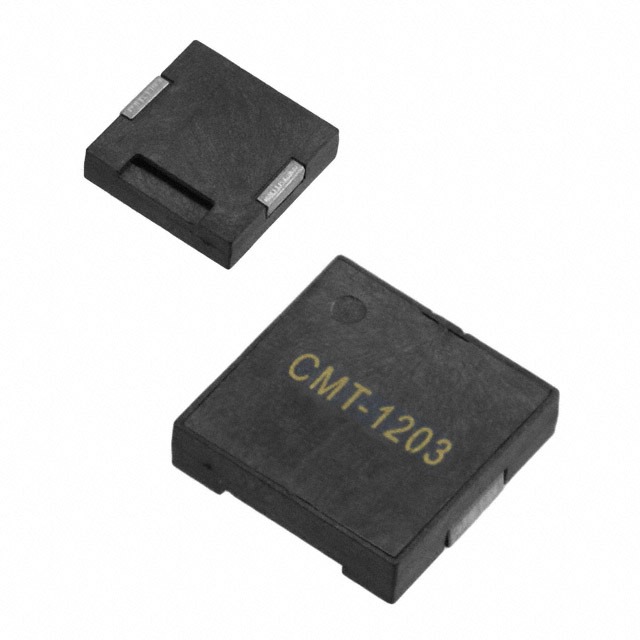

| Base Product Number | CMT-1203 |
