Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Series | CMI |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage – Rated | 3 V |
| Voltage Range | 2 ~ 5V |
| Frequency | 2.7kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | – |
| Sound Pressure Level (SPL) | 75dB @ 3V, 10cm |
| Current – Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | – |
| Ratings | Washable |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.378″ L x 0.378″ W (9.60mm x 9.60mm) |
| Height – Seated (Max) | 0.217″ (5.50mm) |

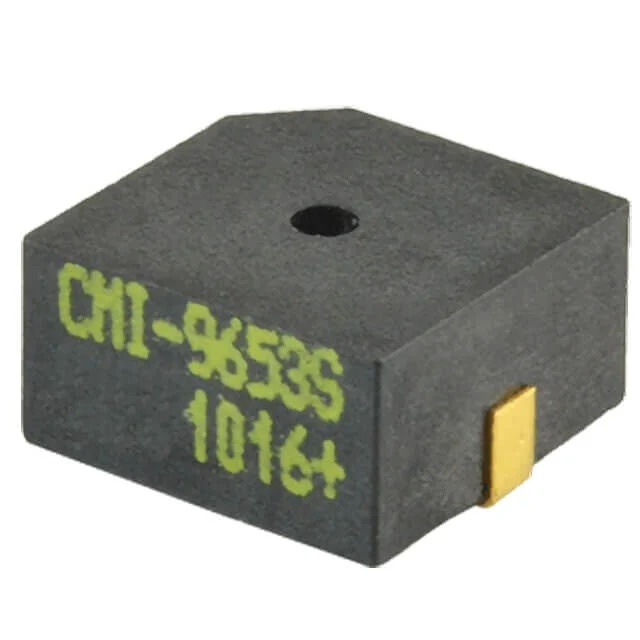

| Base Product Number | CMI-9653 |
Değerlendirmeler
Henüz değerlendirme yapılmadı.
