Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Picker Components |
| Series | PC730 |
| Packaging | Bag |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 330VAC, 36VDC – Max |
| Load – Max Switching | 9900VA, 1080W |
| Coil Current | 99.5 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Quick Connect – 0.250″ (6.3mm) |
| Seal Rating | – |
| Coil Insulation | Class B |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 36 VAC |
| Operate Time | 25 ms |
| Release Time | 15 ms |
| Operating Temperature | -25°C ~ 55°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CUL, cURus, UL |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 1.21 kOhms |

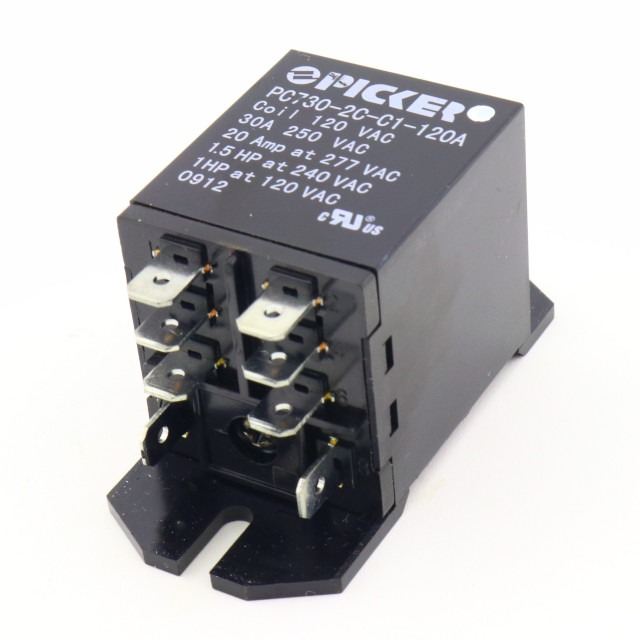

| Base Product Number | PC730-2C |
