Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

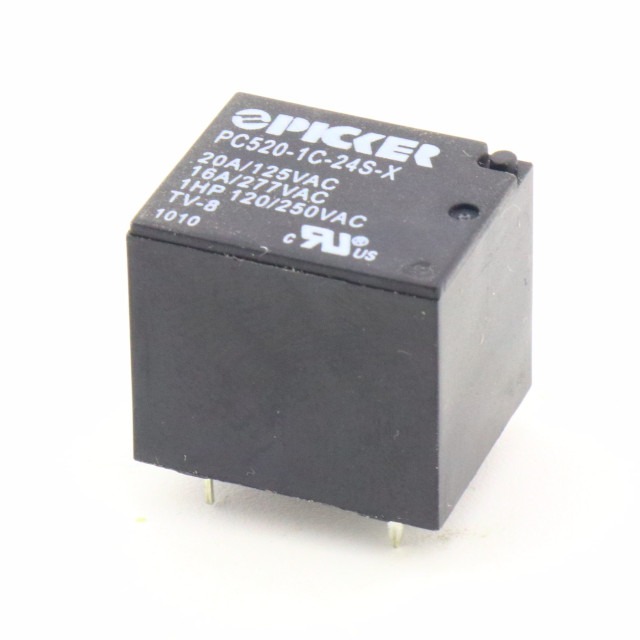

| Mfr | Picker Components |
| Series | PC520 |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 250VAC – Max |
| Load – Max Switching | 5000VA |
| Coil Current | 15 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CUL, cURus, UL |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 1.6 kOhms |
| Base Product Number | PC520-1C |
