Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

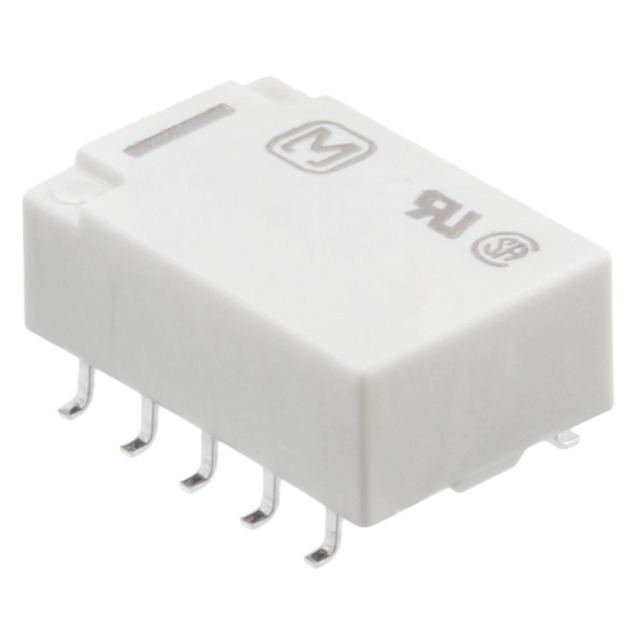

| Manufacturer | Panasonic Electric Works |
| Series | TQ-SMD |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 125VAC, 220VDC – Max |
| Load – Max Switching | 250VA, 440W |
| Coil Current | 8.3 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Gull Wing |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | cURus |
| Relay Type | Telecom |
| Grade | – |
| Qualification | – |
| Coil Resistance | 2.88 kOhms |
| Base Product Number | TQ2SS |
