Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

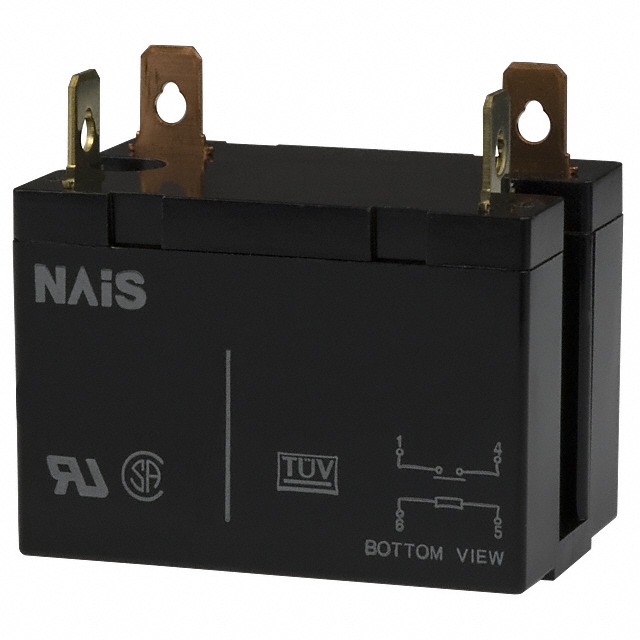

| Mfr | Panasonic Electric Works |
| Series | HE |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 277VAC, 30VDC – Max |
| Load – Max Switching | 8310VA, 900W |
| Coil Current | 21 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Plug In, Quick Connect – 0.250″ (6.3mm) |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 84 VAC |
| Must Release Voltage | 18 VAC |
| Operate Time | 30 ms |
| Release Time | 30 ms |
| Operating Temperature | -50°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CSA, VDE, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 5714 Ohms |
| Base Product Number | HE1AN |
