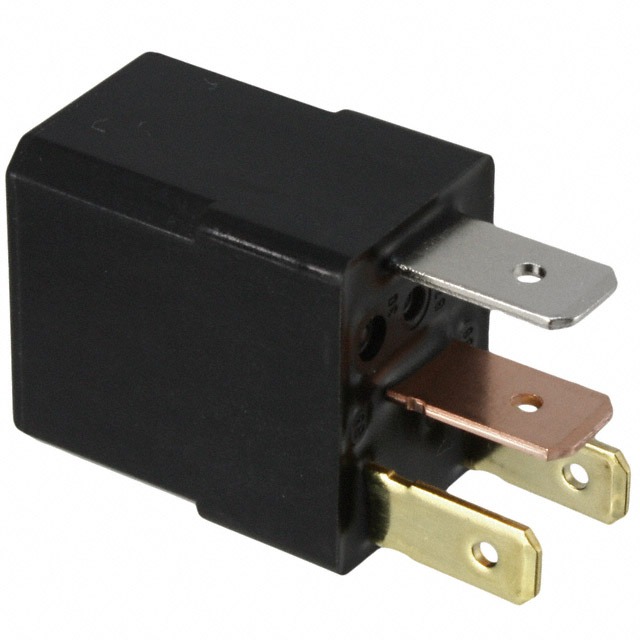

| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Panasonic Electric Works |
| Series | CM |
| Packaging | Tube |
| Part Status | Active |
| Coil Type | Non Latching |
| Coil Current | 125 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 35 A |
| Switching Voltage | 14VDC – Nom |
| Must Operate Voltage | 7 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Features | Resistor, Sealed – Flux Protection |
| Mounting Type | Socketable |
| Termination Style | Plug In |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Coil Power | 1.7W |
| Coil Resistance | 96 Ohms |
| Base Product Number | CM1A |
