Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Panasonic Electric Works |
| Series | PhotoMOS™ AQZ |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Circuit | SPST-NO (1 Form A) |
| Output Type | DC |
| Voltage – Input | 1.16VDC |
| Voltage – Load | 0 V ~ 100 V |
| Load Current | 2.6 A |
| On-State Resistance (Max) | 170 mOhms |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |

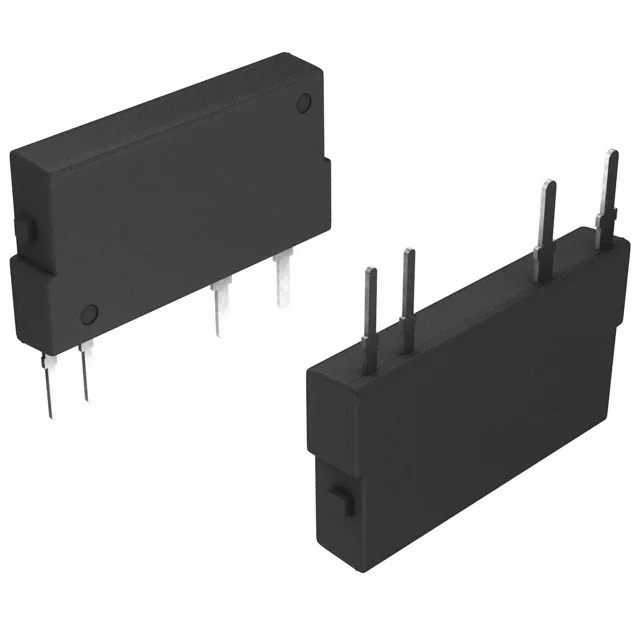

| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIL |
| Approval Agency | UR, VDE |
| Grade | – |
| Qualification | – |
| Base Product Number | – |
