Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | onsemi |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | Push-Pull, Rail-to-Rail |
| Voltage – Supply, Single/Dual (±) | 1.8V ~ 5.5V |
| Voltage – Input Offset (Max) | 6mV @ 5V |
| Current – Input Bias (Max) | 20pA @ 5V |
| Current – Output (Typ) | 48mA |
| Current – Quiescent (Max) | 200µA |
| CMRR, PSRR (Typ) | 81dB CMRR, 88dB PSRR |
| Propagation Delay (Max) | 64ns |
| Hysteresis | – |
| Operating Temperature | -40°C ~ 125°C (TA) |

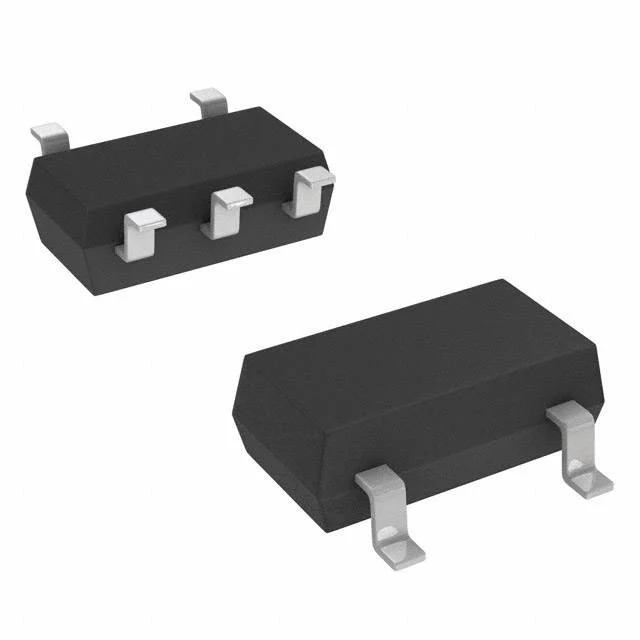

| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-88A (SC-70-5/SOT-353) |
| Base Product Number | NCS2250 |
