Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Omron Electronics Inc-EMC Div |

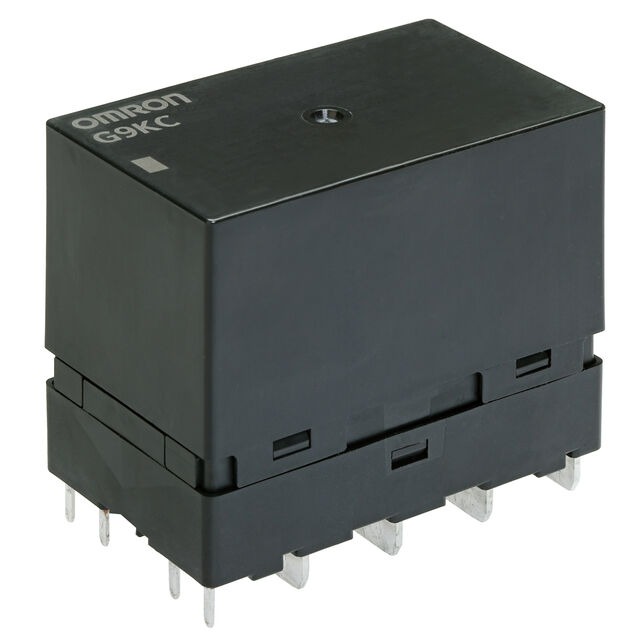

| Series | G9KC |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | 5PST-4NO/1NC (4 Form A, 1 Form B) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 480VAC – Max |
| Load – Max Switching | 19200VA |
| Coil Current | 417 mA |
| Coil Type | Non Latching |
| Features | Auxiliary Contacts |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 50 ms |
| Release Time | 30 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Approval Agency | CQC, cULus, TUV |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 28.8 Ohms |
