Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

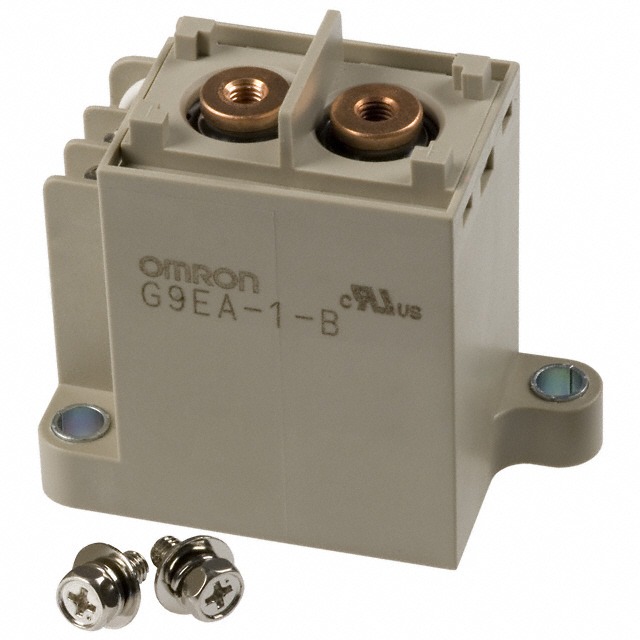

| Mfr | Omron Electronics Inc-EMC Div |
| Series | G9EA-1 |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 60 A |
| Switching Voltage | 400VDC – Max |
| Load – Max Switching | 24000W |
| Coil Current | 417 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Screw Terminal |
| Seal Rating | Sealed – Fully |
| Coil Insulation | – |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.96 VDC |
| Operate Time | 50 ms |
| Release Time | 30 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | – |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 28.8 Ohms |
| Base Product Number | G9EA-1 |
