Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

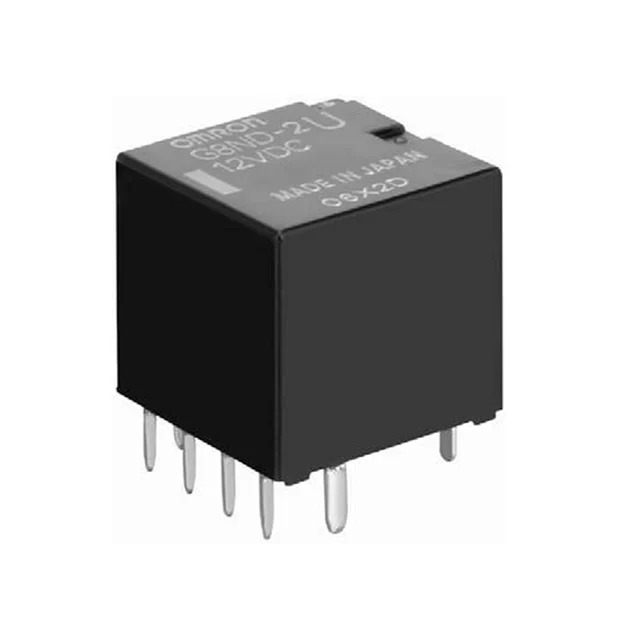

| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G8ND |
| Packaging | Tube |
| Part Status | Last Time Buy |
| Coil Type | Non Latching |
| Coil Current | 66.7 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) x 2 |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 16VDC – Max |
| Must Operate Voltage | 6.5 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Features | – |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Coil Power | 800mW |
| Coil Resistance | 180 Ohms |
| Base Product Number | G8ND-2 |
