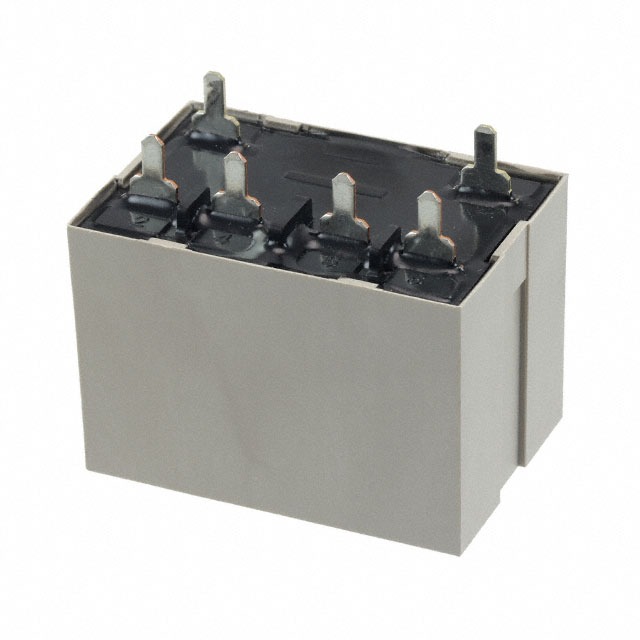

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Omron Electronics Inc-EMC Div |
| Series | G7L |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 250VAC – Max |
| Load – Max Switching | 5000VA |
| Coil Current | 79 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | – |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 3.6 VDC |
| Operate Time | 30 ms |
| Release Time | 30 ms |
| Operating Temperature | -25°C ~ 60°C |
| Contact Material | Silver Alloy |
| Approval Agency | CSA, TUV, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 303 Ohms |
| Base Product Number | G7L-2A |
