Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

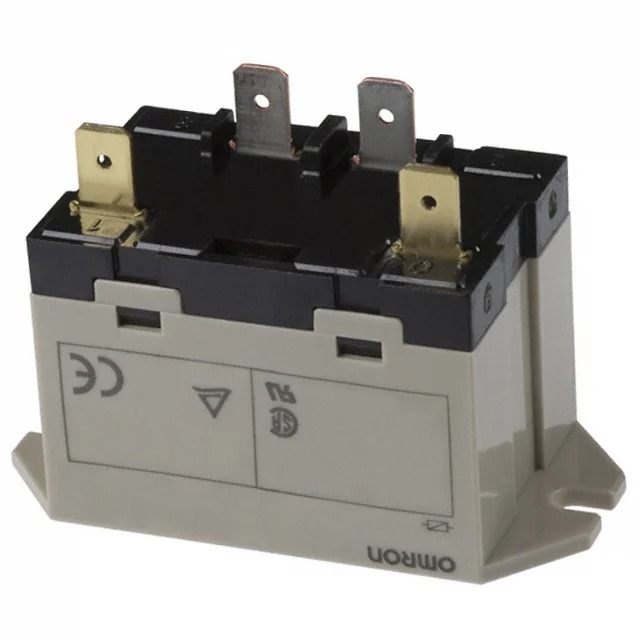

| Mfr | Omron Electronics Inc-EMC Div |
| Series | G7L |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 250VAC – Max |
| Load – Max Switching | 7500VA |
| Coil Current | 20.4 mA |
| Coil Type | Non Latching |
| Features | Test Button |
| Termination Style | Quick Connect – 0.250″ (6.3mm) |
| Seal Rating | – |
| Coil Insulation | Class B |
| Must Operate Voltage | 75 VAC |
| Must Release Voltage | 18 VAC |
| Operate Time | 30 ms |
| Release Time | 30 ms |
| Operating Temperature | -25°C ~ 60°C |
| Contact Material | Silver Alloy |
| Approval Agency | CSA, TUV, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 5.26 kOhms |
| Base Product Number | G7L-1A |
