Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

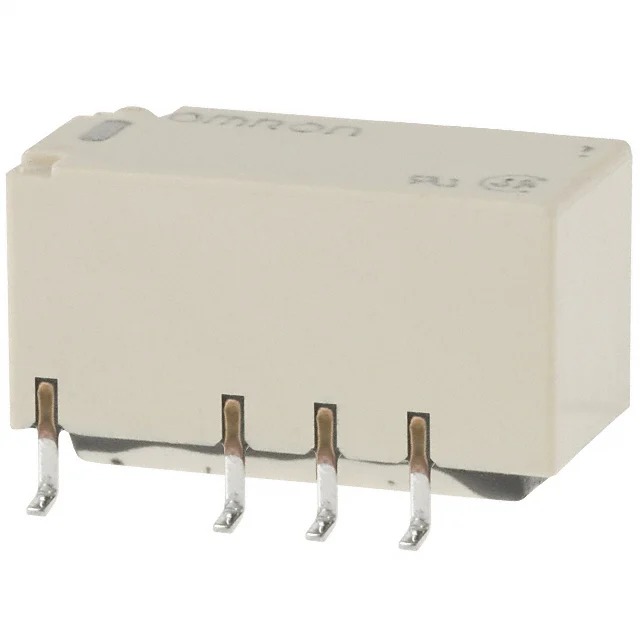

| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G6S |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Coil Voltage | 6VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC – Max |
| Load – Max Switching | 500VA, 440W |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Gull Wing |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 4.5 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | CSA, UR |
| Relay Type | Telecom |
| Grade | – |
| Qualification | – |
| Coil Resistance | 180 Ohms |
| Base Product Number | G6S-2F |
