Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Omron Electronics Inc-EMC Div |

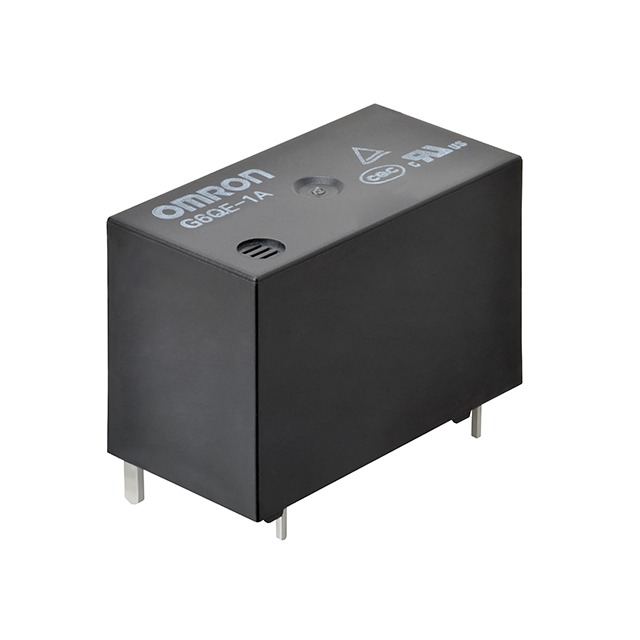

| Series | G6QE |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 32 A |
| Switching Voltage | 277VAC – Max |
| Load – Max Switching | 9000VA |
| Coil Current | 58.3 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Flux Protection |
| Coil Insulation | – |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Approval Agency | CQC, cULus, TUV |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 411.4 Ohms |
| Base Product Number | G6QE-1A |
