| ÖZELLİK | AÇIKLAMA |
|---|---|

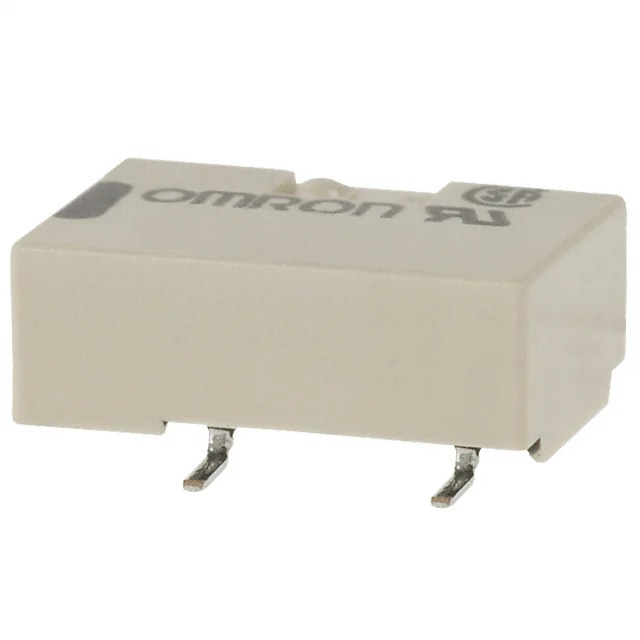

| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G6L |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 125VAC, 60VDC – Max |
| Load – Max Switching | 125VA, 60W |
| Coil Current | 36 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Gull Wing |
| Seal Rating | Sealed – Fully |
| Coil Insulation | – |
| Must Operate Voltage | 4 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | – |
| Approval Agency | CSA, UL |
| Relay Type | Telecom |
| Grade | – |
| Qualification | – |
| Coil Resistance | 139 Ohms |
| Base Product Number | G6L-1F |
