Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

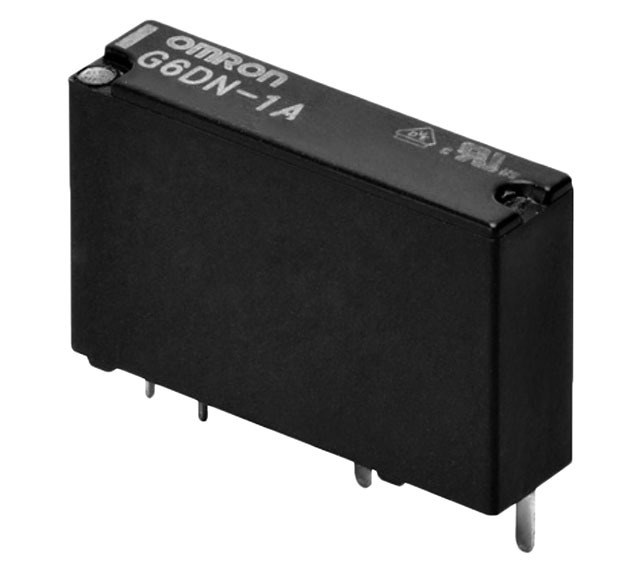

| Mfr | Omron Electronics Inc-EMC Div |
| Series | G6DN |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 277VAC, 125VDC – Max |
| Load – Max Switching | 1385VA, 625W |
| Coil Current | 9.2 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class B |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 90°C |
| Contact Material | Silver Alloy |
| Approval Agency | cURus, TUV, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 1.31 kOhms |
| Base Product Number | G6DN-1A |
