Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

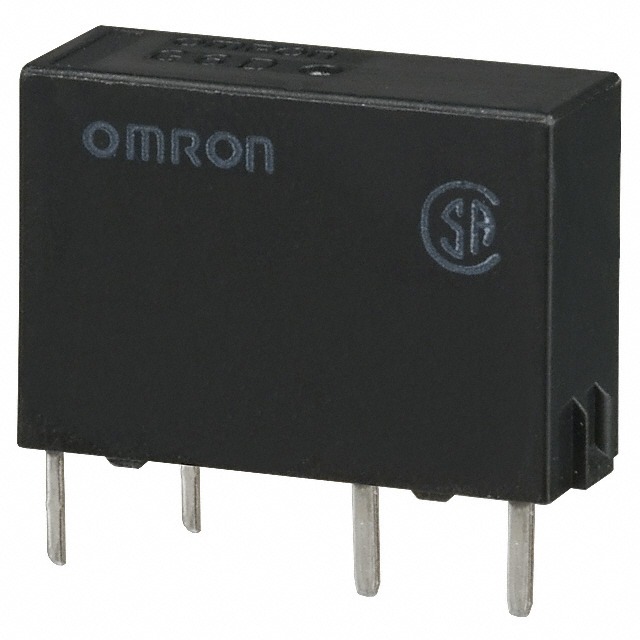

| Mfr | Omron Electronics Inc-EMC Div |
| Series | G6D |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC, 30VDC – Max |
| Load – Max Switching | 1250VA, 150W |
| Coil Current | 40 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | – |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Alloy |
| Approval Agency | CSA, TUV, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 125 Ohms |
| Base Product Number | G6D-1A-A |
