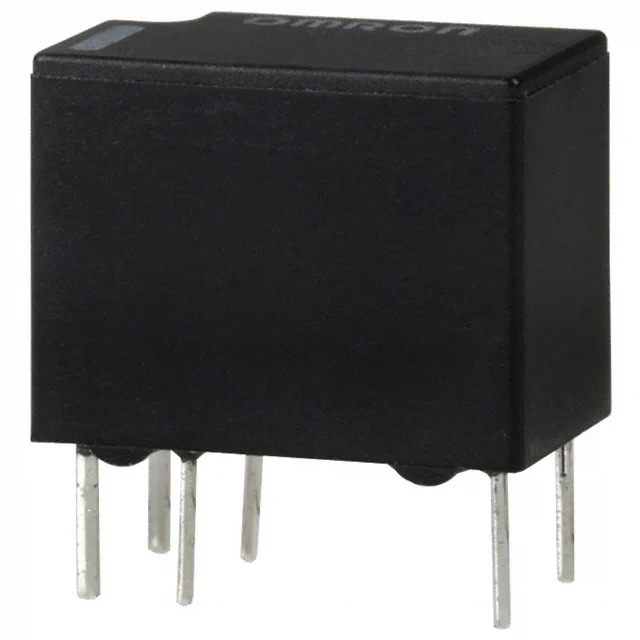

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G5V-1 |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 125VAC, 60VDC – Max |
| Load – Max Switching | 125VA, 60W |
| Coil Current | 6.3 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | – |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 3.84 kOhms |
| Base Product Number | G5V-1-2 |
