Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Omron Electronics Inc-EMC Div |
| Series | G3VM |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage – Input | 1.33VDC |
| Voltage – Load | 0 V ~ 60 V |
| Load Current | 1.7 A |
| On-State Resistance (Max) | 130 mOhms |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |

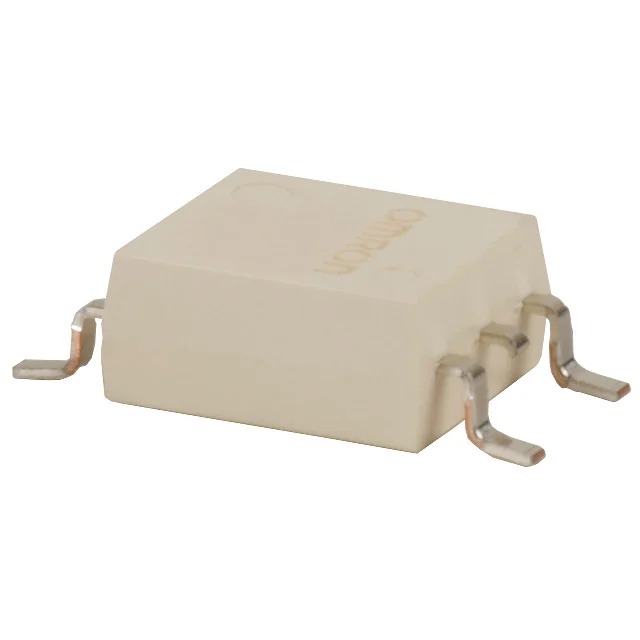

| Package / Case | 4-SOP (0.173″, 4.40mm) |
| Supplier Device Package | 4-SOP |
| Approval Agency | – |
| Grade | – |
| Qualification | – |
| Base Product Number | G3VM-61 |
