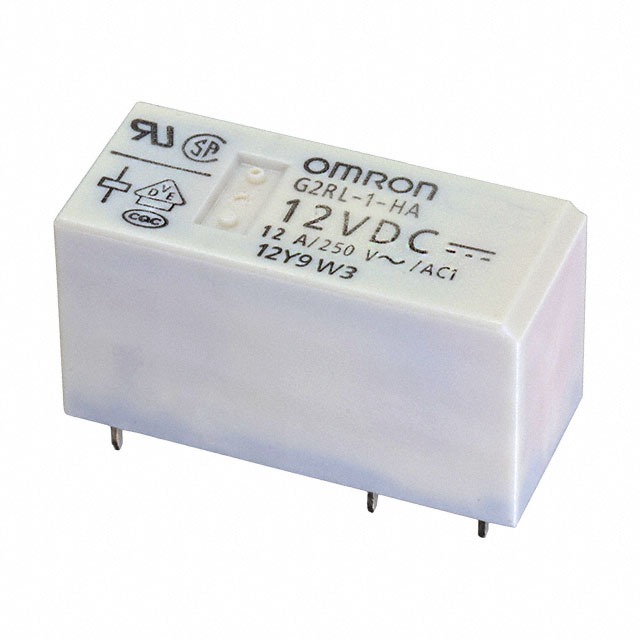

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Omron Electronics Inc-EMC Div |
| Series | G2RL |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 440VAC, 300VDC – Max |
| Load – Max Switching | 5280VA, 3600W |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Approval Agency | CQC, CSA, UR, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 360 Ohms |
| Base Product Number | G2RL-1-H |
