Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

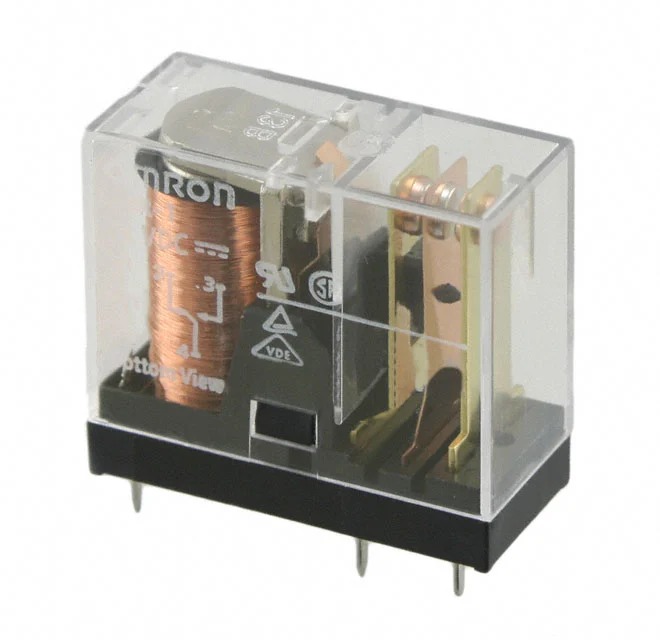

| Mfr | Omron Electronics Inc-EMC Div |
| Series | G2R |
| Packaging | Tray |
| Part Status | Last Time Buy |
| Mounting Type | Through Hole |
| Coil Voltage | 220VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 380VAC, 125VDC – Max |
| Load – Max Switching | 3800VA, 1250W |
| Coil Current | 4.1 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Flux Protection |
| Coil Insulation | – |
| Must Operate Voltage | 176 VAC |
| Must Release Voltage | 66 VAC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Alloy |
| Approval Agency | CSA, TUV, UR, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 25 kOhms |
| Base Product Number | G2R-1-A |
