Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

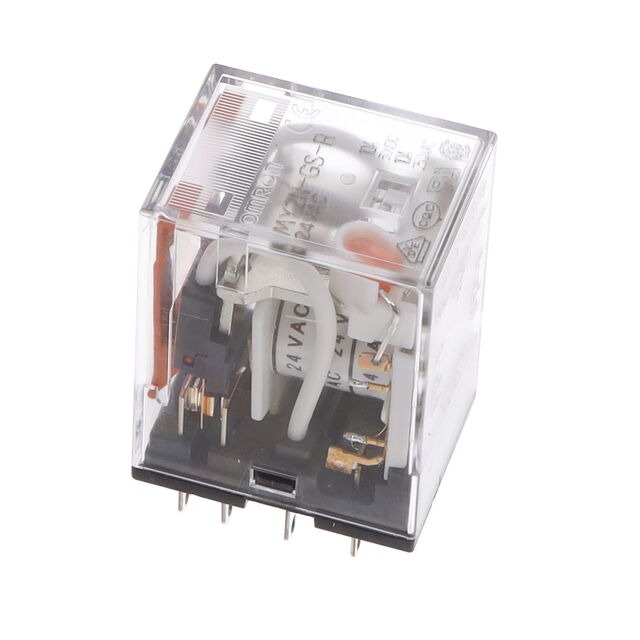

| Mfr | Omron Automation and Safety |
| Series | MY |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 220VDC – Max |
| Load – Max Switching | 1750VA, 1540W |
| Coil Current | 133.3 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Mechanical Indicator |
| Termination Style | Plug In, Quick Connect – 0.110″ (2.8mm) |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 19.2 VAC |
| Must Release Voltage | 7.2 VAC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CE, CSA, UR, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 180 Ohms |
| Base Product Number | MY2N-G |
