Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

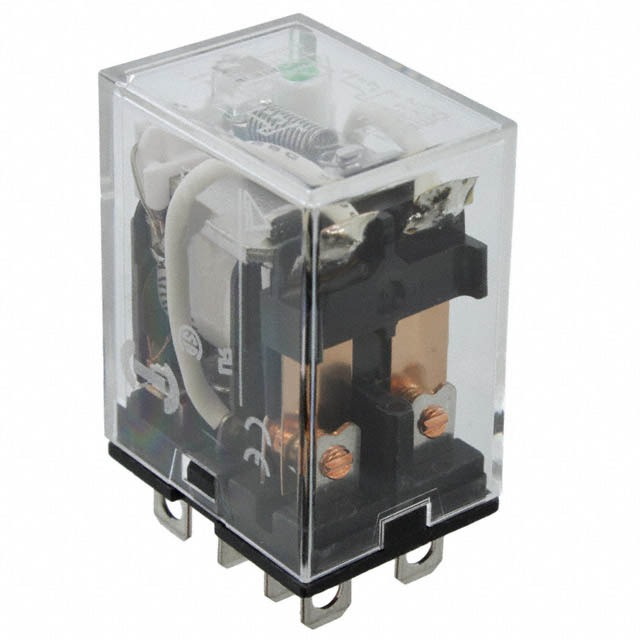

| Mfr | Omron Automation and Safety |
| Series | LY |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 125VDC – Max |
| Load – Max Switching | 2500VA, 1250W |
| Coil Current | 75 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator |
| Termination Style | Plug In |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -25°C ~ 55°C |
| Contact Material | Silver Alloy |
| Approval Agency | CE, CSA, TUV, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 160 Ohms |
| Base Product Number | LY2N-DC |
