Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Omron Automation and Safety |
| Series | G7J |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Form | 4PST-2NO/2NC (2 Form A, 2 Form B) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 250VAC, 125VDC – Max |
| Load – Max Switching | 6250VA, 3125W |
| Coil Current | 21.6 mA |
| Coil Type | Non Latching |

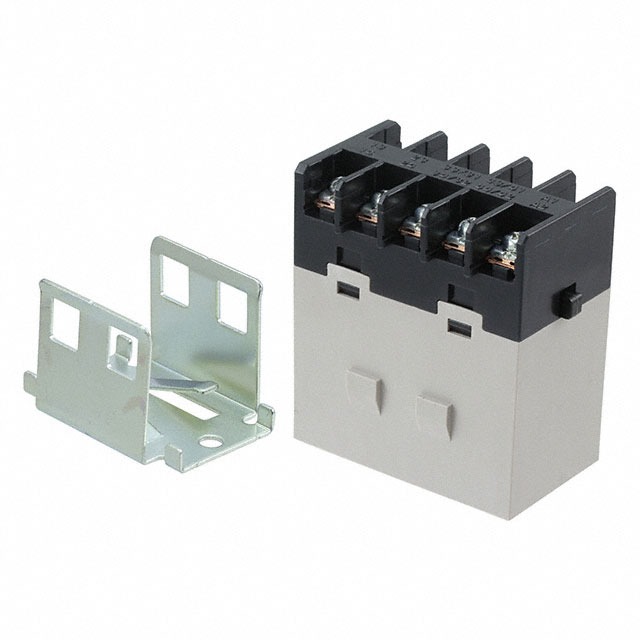

| Features | Bracket Included, Test Button |
| Termination Style | Screw Terminal |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 75 VAC |
| Must Release Voltage | 18 VAC |
| Operate Time | 50 ms |
| Release Time | 50 ms |
| Operating Temperature | -25°C ~ 60°C |
| Contact Material | – |
| Approval Agency | CE, CSA, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 5.55 kOhms |
| Base Product Number | G7J-2A |
