Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

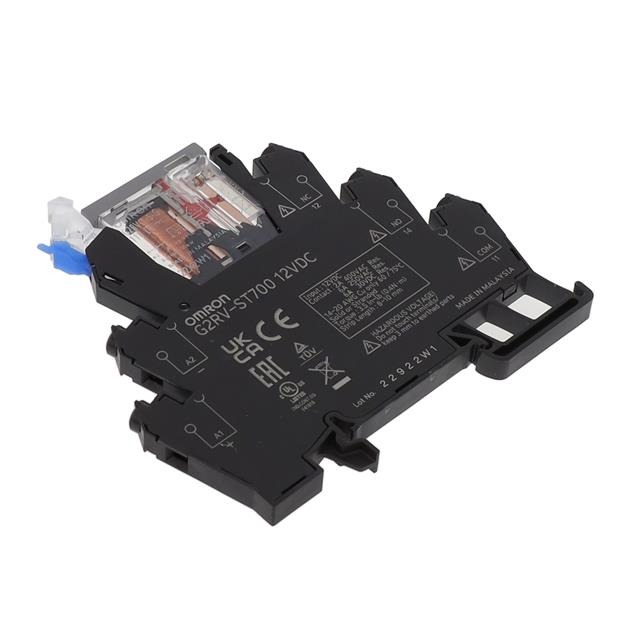

| Mfr | Omron Automation and Safety |
| Series | G2RV-ST |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | DIN Rail |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 440VAC, 125VDC – Max |
| Load – Max Switching | 2640VA, 750W |
| Coil Current | 27.9 mA |
| Coil Type | Non Latching |
| Features | Socket Included |
| Termination Style | Screw Terminal |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Alloy |
| Approval Agency | CE, cULus, TUV |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 430.108 Ohms |
| Base Product Number | G2RV-ST |
