Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

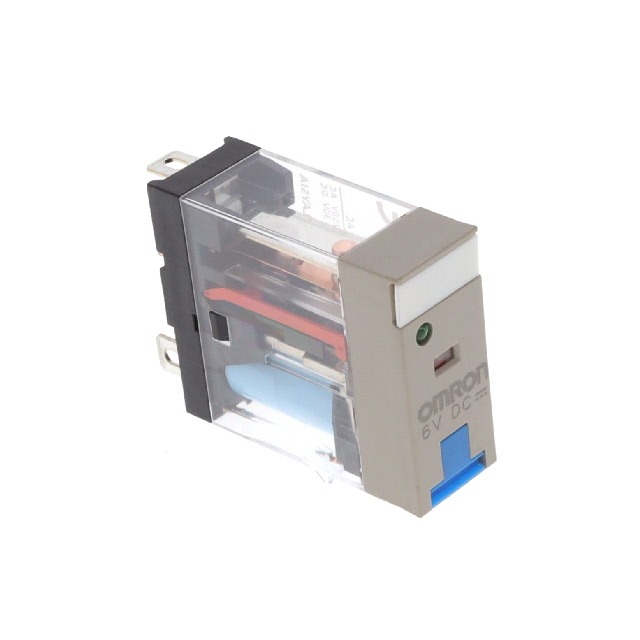

| Mfr | Omron Automation and Safety |
| Series | G2RS |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 6VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 440VAC, 125VDC – Max |
| Load – Max Switching | 4400VA, 1250W |
| Coil Current | 87 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Test Button |
| Termination Style | Plug In, Quick Connect – 0.187″ (4.7mm) |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 4.2 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | – |
| Approval Agency | CE, CSA, LR, UR, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 69 Ohms |
| Base Product Number | G2R-1-S |
