Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

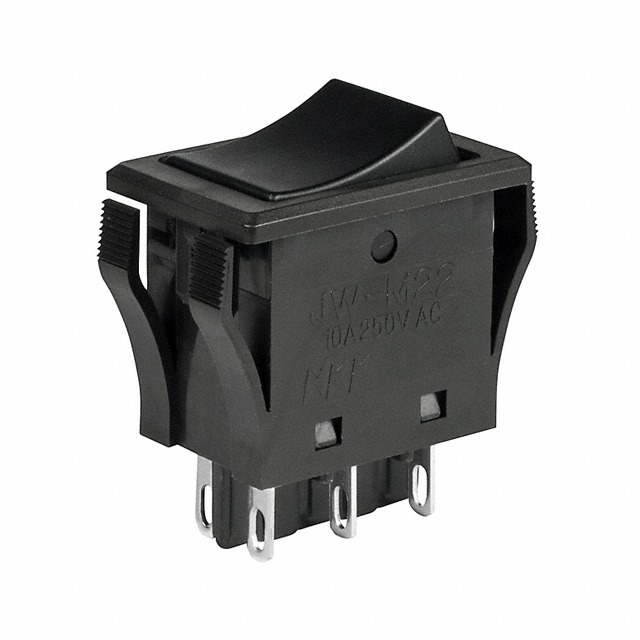

| Mfr | NKK Switches |
| Series | JW |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Panel Mount, Snap-In |
| Circuit | DPDT |
| Switch Function | On-On |
| Current Rating (Amps) | 10A (AC) |
| Voltage Rating – AC | 250 V |
| Actuator Type | Concave (Curved) |
| Color – Actuator/Cap | Black |
| Actuator Marking | No Marking |
| Illumination Type, Color | – |
| Illumination Voltage (Nominal) | – |
| Termination Style | Solder, Quick Connect – 0.110″ (2.8mm) |
| Ingress Protection | Dust Proof |
| Features | Epoxy Sealed Terminals |
| Panel Cutout Dimensions | Rectangular – 24.00mm x 15.40mm |
| Operating Temperature | -25°C ~ 70°C |
| Approval Agency | CSA, UL, VDE |
| Mechanical Life | 25,000 Cycles |
| Electrical Life | 25,000 Cycles |
| Base Product Number | JWM22R |
