Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

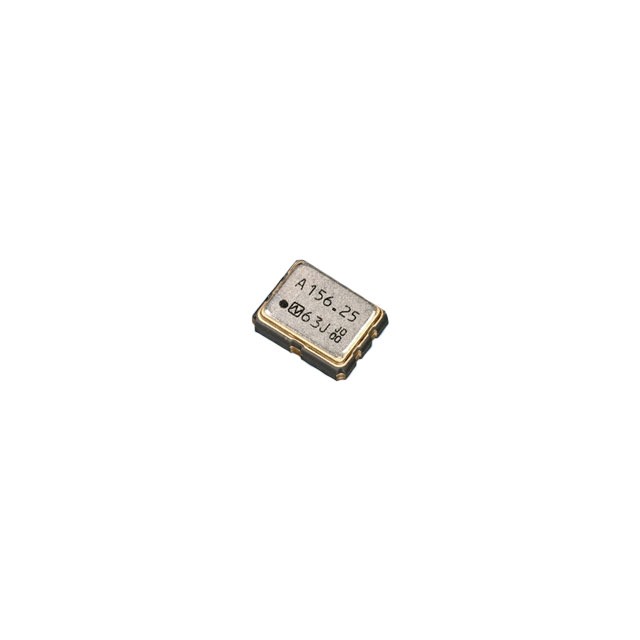

| Mfr | NDK (NIHON DEMPA KOGYO CO., LTD) |
| Series | NP3225SA |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 156.25 MHz |
| Function | Standby (Power Down) |
| Output | LVPECL |
| Voltage – Supply | 3.3V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 60mA |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.126″ L x 0.098″ W (3.20mm x 2.50mm) |
| Height – Seated (Max) | 0.039″ (1.00mm) |
| Current – Supply (Disable) (Max) | 15µA |
