Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

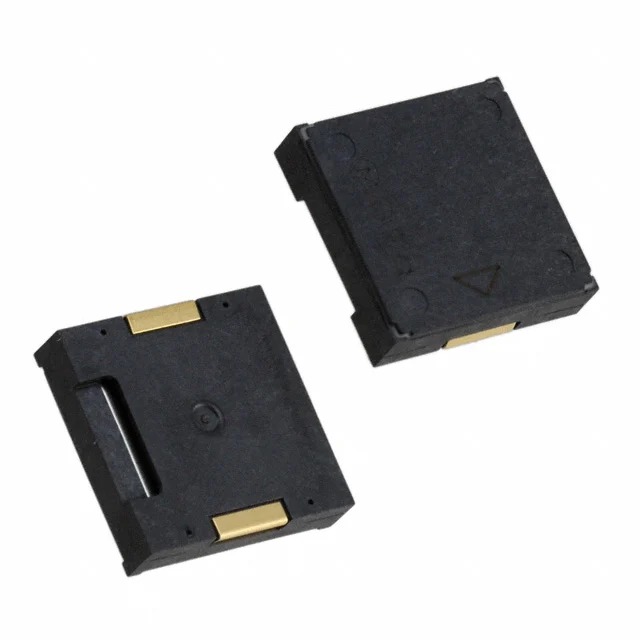

| Manufacturer | Murata Electronics |
| Series | PK |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Last Time Buy |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage – Rated | 1.5 V |
| Voltage Range | 12.5V (Max) |
| Frequency | 2.4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | – |
| Sound Pressure Level (SPL) | 75dB @ 1.5V, 10cm |
| Current – Supply | – |
| Port Location | Side |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | – |
| Ratings | – |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.472″ L x 0.472″ W (12.00mm x 12.00mm) |
| Height – Seated (Max) | 0.126″ (3.20mm) |
| Base Product Number | PKLCS12 |
