Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Monolithic Power Systems Inc. |
| Series | MP |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Motor Type – Stepper | Bipolar |
| Motor Type – AC, DC | – |
| Function | Driver – Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (8) |
| Interface | Logic |
| Technology | Power MOSFET |
| Step Resolution | 1, 1/2, 1/4, 1/8 |
| Applications | Printer, Stepper Motors |
| Current – Output | 2.5A |
| Voltage – Supply | 4.5V ~ 35V |
| Voltage – Load | – |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

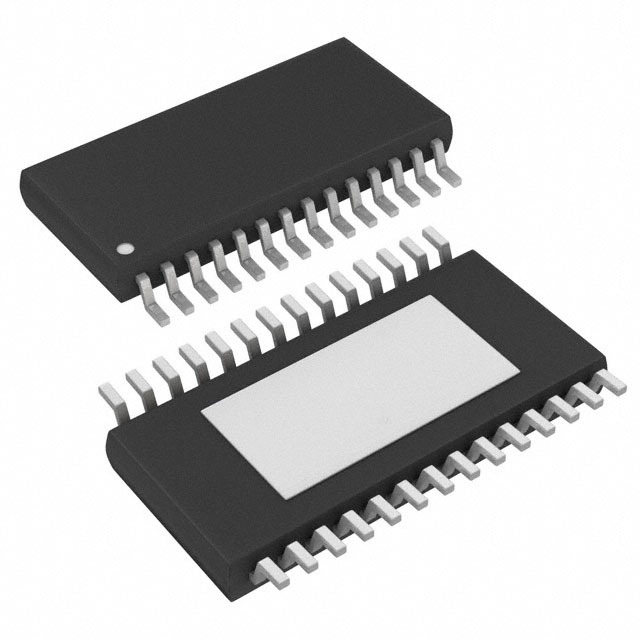

| Package / Case | 28-TSSOP (0.173″, 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP-EP |
